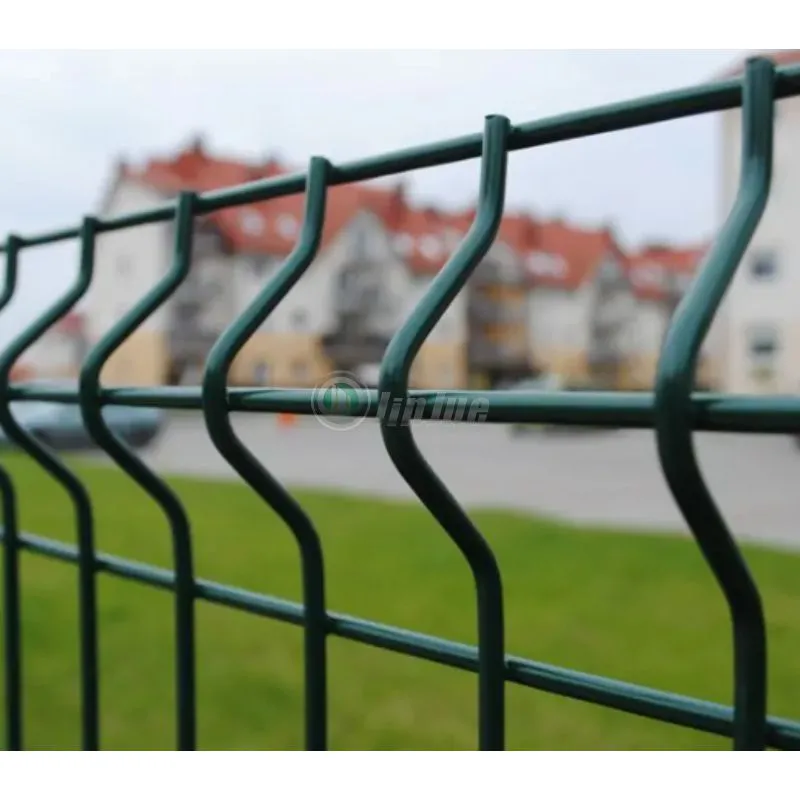

3D Panel Fence

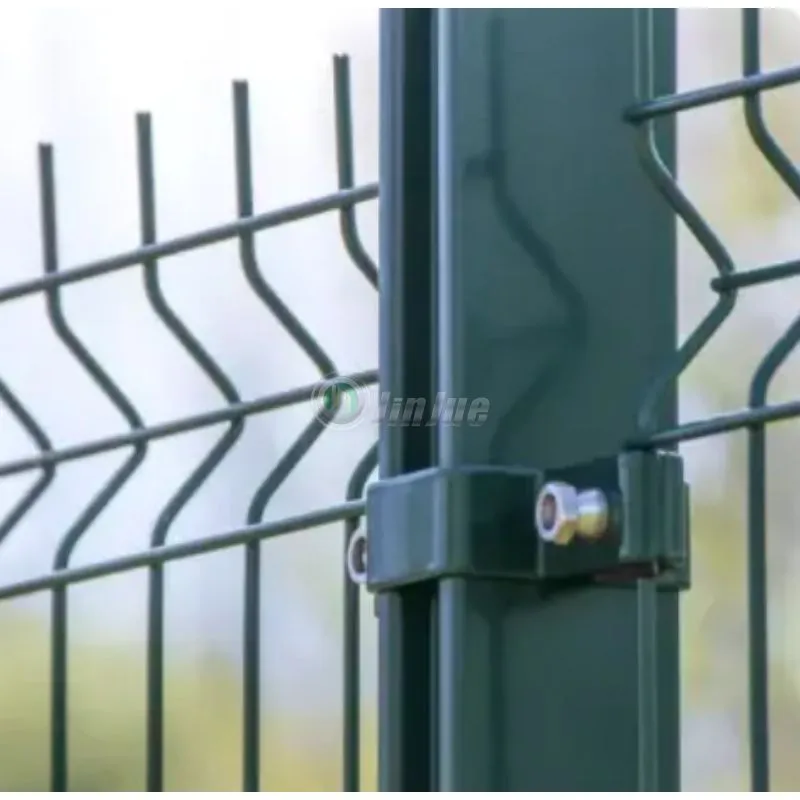

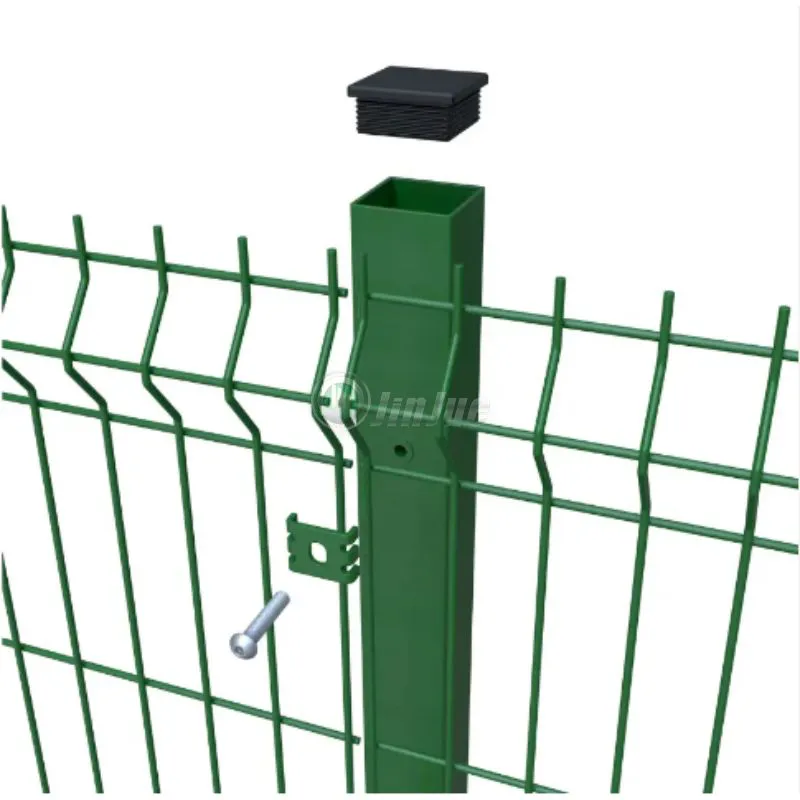

The 3D Panel Fence creates a unique aesthetic effect through the proper bending of the wire mesh. The surface can be sprayed in various colors, and different colored posts and meshes can be freely combined to produce diverse visual effects. These products are very easy and quick to install; simply combine the posts with flange plates and expansion bolts to quickly use the product, improving work efficiency.

Inquire Now

Applications:

Railway enclosures, residential area fences, field fences, development zone isolation, etc.

Performance:

1. Superior Performance:This product uses high-quality raw materials and undergoes special surface treatments, resulting in extremely high corrosion resistance.

2. Easy Installation:The product installation does not require special accessories. The push-fit design is easy to handle and hold, simple and quick, and reduces costs.

Surface Treatment Options:

1. Electro-galvanized steel wire + powder coating

2. Hot-dip galvanizing after welding

3. PVC coating

Specification of 3D Fence Panel

Material	high quality galvanized wire or low carbon steel wire
Wire Diameter	3 mm-6 mm
Mesh Opening	50 mm x 100 mm, 55 mm x 100 mm, 50 mm x 200 mm, 55 mm x 200mm etc.
Length	2.5 m or 3.0 m.
Height	0.5m-4.0 m, depending on your usage needs.
Surface Treatment	hot dipped galvanized, PVC coated after galvanized or powder coated after galvanized
