Hinge Joint Field Fence

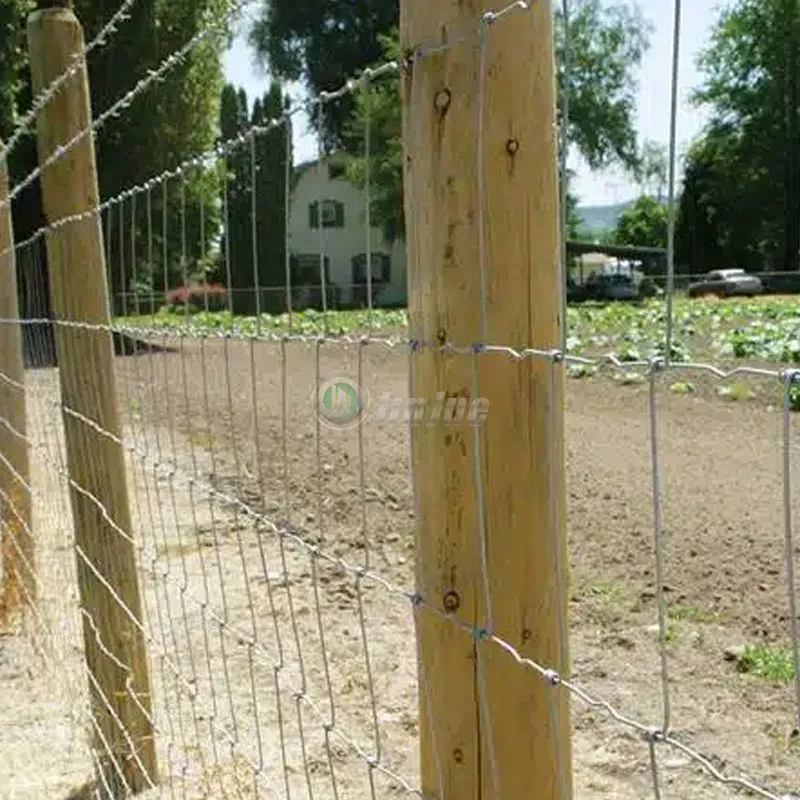

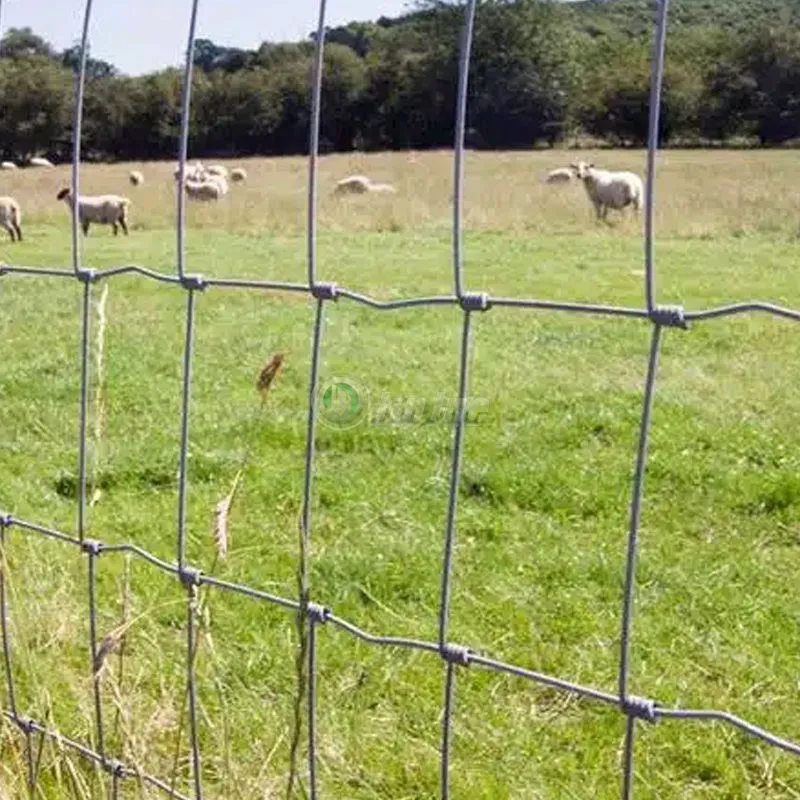

The hinge joint field fence, often called the hinge knot field fence, is widely recognized as one of the most economical and commonly used fencing options in agriculture and livestock management. This design incorporates vertical stay wires that wrap securely around the horizontal line wires at every junction, creating a strong and flexible structure.

Hinge knot field fence’s unique configuration ensures a smooth surface, effectively absorbing impact from animals without causing injury. Available in multiple heights, it accommodates various animal sizes and fencing needs. This fence type is typically installed using steel T-posts or Y-posts, making it a versatile choice for farmers and ranchers.

Inquire Now Next Product

Specification

Hinge Joint Field Fence: The Top Choice for Agricultural Security

Specifications of Hinge Joint Field Fence

Materials: Crafted from high-quality high carbon steel wire and low carbon steel wire, ensuring durability and resilience.

Height Options: Available in a range of heights from 0.6 m to 2.45 m, with common sizes including 1.2 m, 1.5 m, and 1.8 m to suit various agricultural needs.

Knot Design: Features a hinge joint knot type, which enhances flexibility and strength for long-term use.

Wire Diameters:

Line Wire: Available in diameters of 1.6 mm, 2.0 mm, 2.5 mm, and 3.0 mm, catering to different levels of strength and applications.

Top and Bottom Wire: Comes in diameters of 2.0 mm, 2.5 mm, 3.0 mm, and 3.7 mm, providing robust support for the overall fence structure.

Primary Markets: Widely distributed in regions such as Malaysia, Australia, Peru, North America, and Africa, making it a globally recognized choice for agricultural fencing solutions.

Model Code	Mesh Sizes (mm)	Weight (G.W.) (kg)	Wire Diameter (mm)
7/150/813/50	102, 114, 127, 140, 152, 178	19.3	2.0/2.5
8/150/813/50	89 (75), 89, 102, 114, 127, 140, 152	20.8	2.0/2.5
8/150/902/50	89, 102, 114, 127, 140, 152, 178	21.6	2.0/2.5
8/150/1016/50	102, 114, 127, 140, 152, 178, 203	22.6	2.0/2.5
8/150/1143/50	114, 127, 140, 152, 178, 203, 229	23.6	2.0/2.5
9/150/991/50	89 (75), 89, 102, 114, 127, 140, 152, 178	23.9	2.0/2.5
9/150/1245/50	102, 114, 127, 140, 152, 178, 203, 229	26	2.0/2.5
10/150/1194/50	89 (75), 89, 102, 114, 127, 140, 152, 178, 203	27.3	2.0/2.5
10/150/1334/50	89 (75), 89, 102, 114, 127, 140, 152, 178, 203, 229	28.4	2.0/2.5
11/150/1422/50	89 (75), 89, 102, 114, 127, 140, 152, 178, 203, 229	30.8	2.0/2.5

Key Features of Hinge Joint Field Fence

Cost-Effective Solution:

Recognized as one of the most affordable and widely utilized types of field fencing, making it accessible for various agricultural needs.

Animal-Safe Design:

Engineered with a smooth surface to minimize the risk of injury to livestock, ensuring a safe environment for animals.

Customizable Height Options:

Available in multiple heights to accommodate different species, allowing farmers to choose the perfect fit for their specific requirements.

Flexible Wire Spacing:

Offers different horizontal wire spacing options to cater to the growth stages of various animals, enhancing adaptability.

Variable Tensile Strength:

Provides choices in vertical wire spacing, allowing users to select the right level of strength based on their fencing needs.

Versatile for Various Animals:

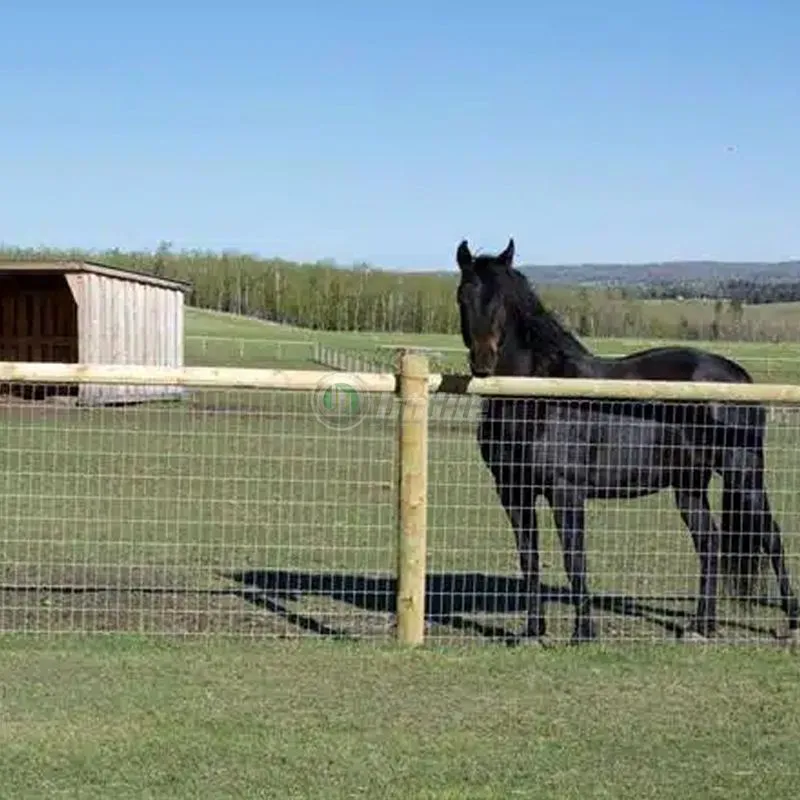

Suitable for a wide range of animals, including chickens, rabbits, cats, horses, sheep, deer, and even camels, making it an excellent choice for diverse farming operations.

These features make the hinge joint field fence an ideal solution for effective livestock management and crop protection.

FAQ

Q: What is a hinge joint field fence?

A: A hinge joint field fence, also known as a hinge knot field fence, is a specialized type of fencing designed to enclose and protect agricultural land, pasture areas, and livestock. Its unique hinge joint structure provides flexibility and strength, making it suitable for various farm applications.

Q: What materials are hinge joint field fences made from?

A: Hinge joint field fences are commonly constructed from galvanized steel or high-tensile wire to ensure durability and corrosion resistance. The material choice often depends on factors such as the type of livestock, required strength, and budget considerations.

Q: What is the main function of a hinge joint field fence?

A: The primary function of a hinge joint field fence is to securely contain and protect livestock, mark property boundaries, reduce the risk of crop damage, and deter predators from entering farming areas.

Q: Which types of livestock can be contained with a hinge joint field fence?

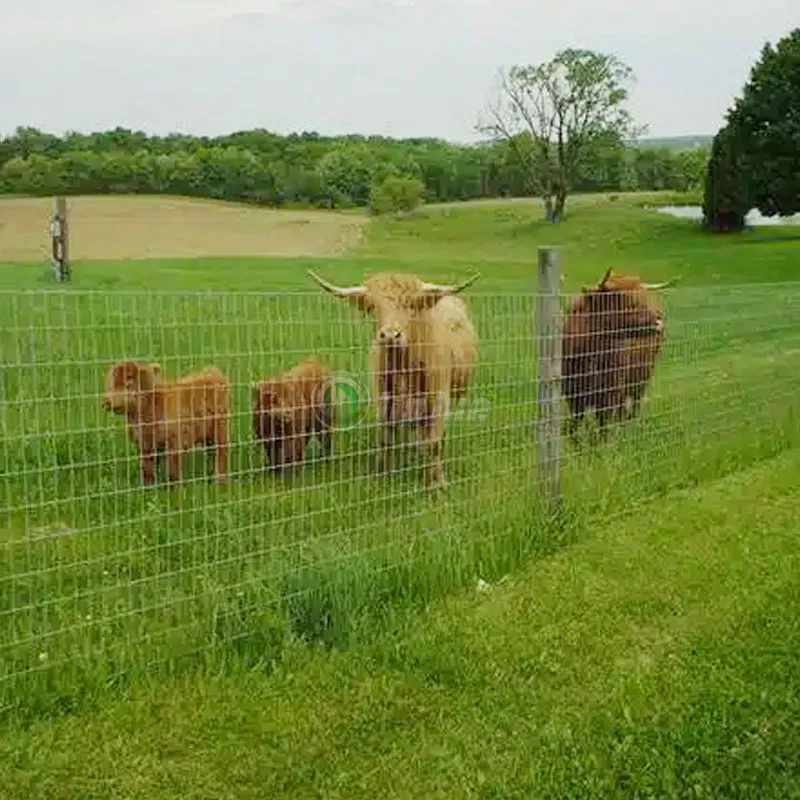

A: Hinge joint field fences are suitable for a wide range of livestock, including cattle, sheep, goats, and horses. The design can be customized with different mesh sizes and heights to accommodate the specific needs of various animals.

Q: How high should a hinge joint field fence be for different livestock types?

A: The ideal height of a hinge joint field fence depends on the size and species of the animals being enclosed. Taller fences are often recommended for larger animals like cattle, while shorter heights may suffice for smaller livestock like sheep. Specific height recommendations can vary based on livestock requirements.

Q: Can a hinge joint field fence help protect crops?

A: Yes, hinge joint field fences are frequently used to safeguard crops from livestock intrusion. By preventing animals from accessing cultivated areas, these fences play a vital role in reducing crop damage and maintaining agricultural productivity.

Q: What are the installation options for hinge joint field fences?

A: Hinge joint field fences are generally installed with steel T-posts or Y-posts, providing stability and durability in various terrains. This setup ensures the fence remains secure, even in outdoor, rural environments.
