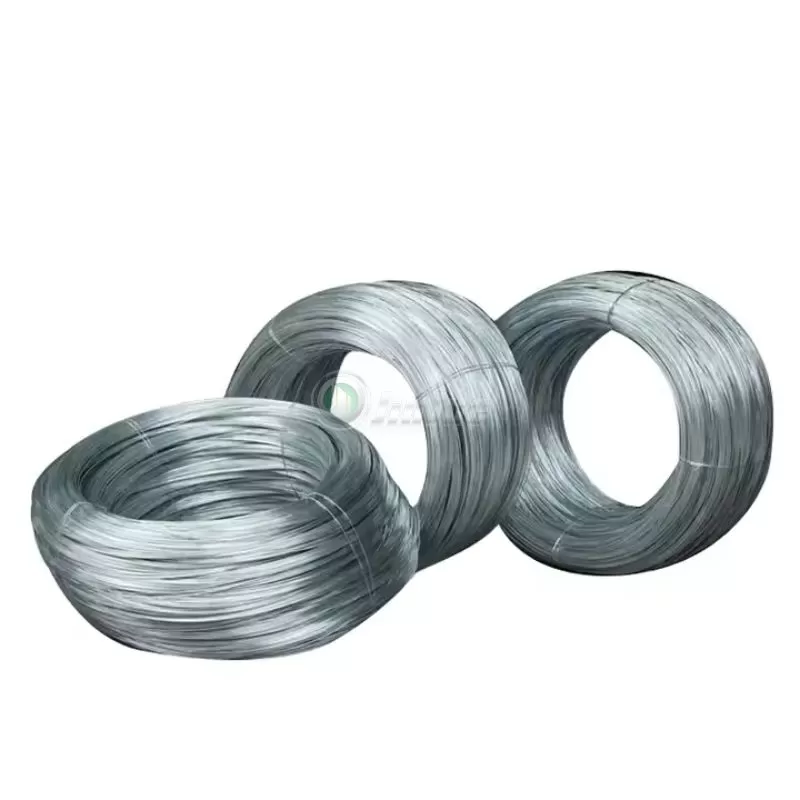

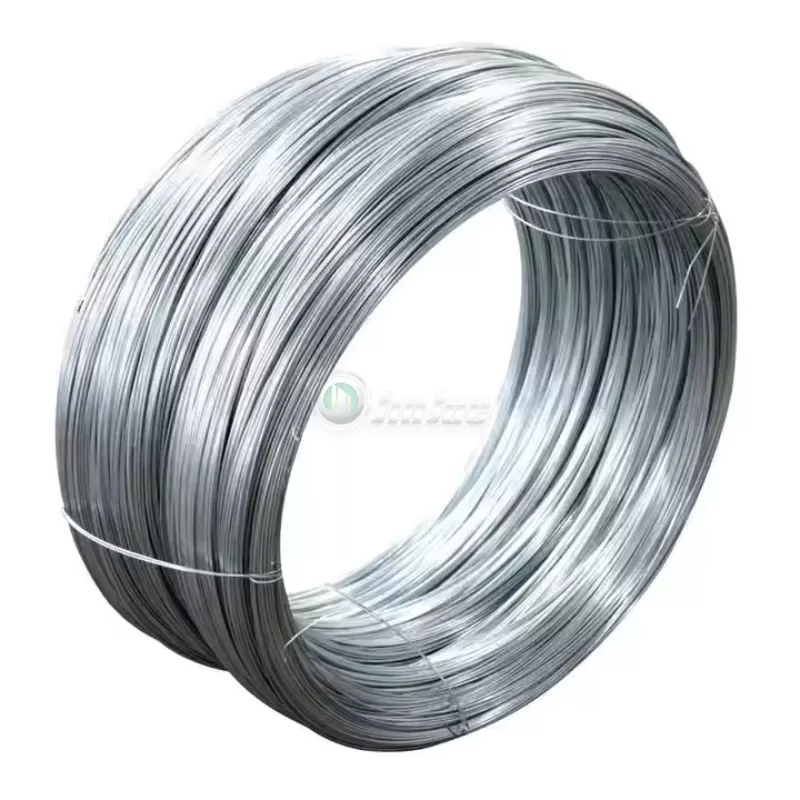

Electro Galvanized Wire

Product Introduction

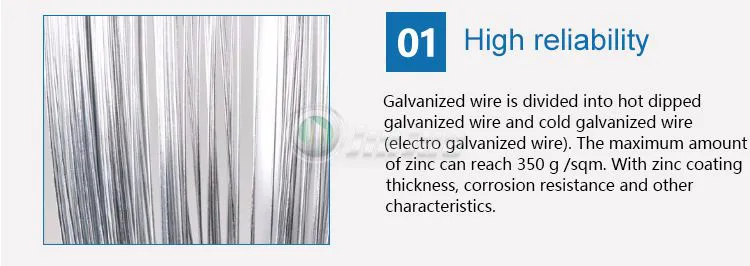

Electro-galvanized wire, also known as cold galvanized wire, is made from high-quality carbon steel wire. The processing of this wire involves galvanizing using electrolytic equipment. Generally, the galvanized layer is not very thick, but electro-galvanized wire has sufficient corrosion and oxidation resistance. Additionally, the surface of the galvanized layer is very uniform, smooth, and bright. The zinc coating weight of electro-galvanized wire typically ranges from 8 to 50 grams per square meter. This type of wire is primarily used for manufacturing nails, wire ropes, wire mesh, fences, floral binding, and wire weaving.

Inquire Now Next Product

Specification

Item	Details
Material	Carbon steel wire
Process	Steel rod rolling → Wire drawing → Annealing → Rust removal → Pickling → Boiling → Drying → Galvanizing → Coiling
Wire Diameter	Gauge 6–24 (0.55–5 mm)
Tensile Strength	350–550 N/mm²
Elongation	8% - 15%

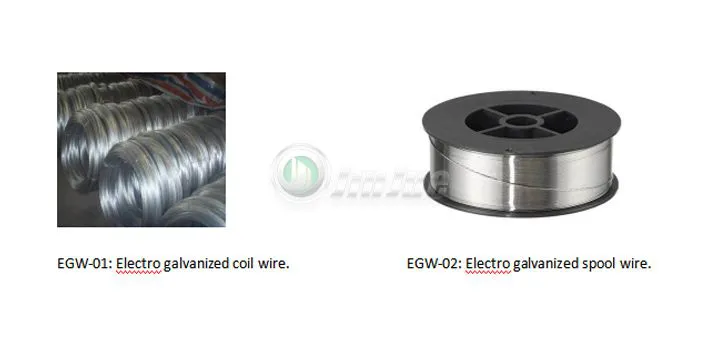

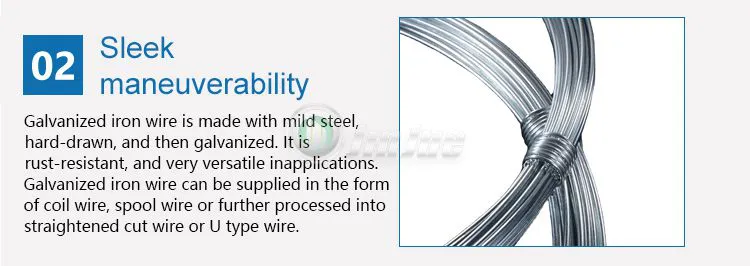

Function	Forming wire into coils, spools, or processing into cut-to-length or U-shaped wire
Types	- General-purpose steel wire - Light galvanized soft steel wire - Heavy galvanized soft steel wire - Extra-heavy galvanized soft steel wire - High carbon steel wire

Galvanised Wire Specifications with Wire Diameter in mm and Unit Coil Weight

Gauge	SWG in mm	BWG in mm	metric mm	Common weight/coil
8 #	4.06	4.19	4.00	50-100kgs
10#	3.25	3.40	3.50	50-100kgs
12#	2.64	2.77	2.80	50-100kgs
14#	2.03	2.11	—	50-100kgs
16#	1.63	1.65	1.65	50-100kgs
18#	1.22	1.25	1.20	5-25kgs
20#	0.91	0.89	0.90	5-25kgs
21#	0.81	0.813	0.80	5-25kgs
22#	0.71	0.711	0.70	5-25kgs

The difference between Electro Galvanized Wire and Hot Dipped Galvanzied Wire

Definition and Process

Hot Dipped Galvanized Wire: Produced by immersing steel parts in a molten zinc solution (about 500°C). The zinc forms a protective layer on the steel to prevent corrosion. This process is widely used in structural metal facilities across various industries.

Electro Galvanized Wire: Created through electroplating, where a thin layer of zinc is deposited on steel using electrolytic processes. This process provides corrosion resistance but is less durable compared to hot-dip galvanizing, often used for decorative and light corrosion protection.

Process Flow

Hot Dipped Galvanized Wire:

Steps: Pickling → Washing → Booster Solution → Drying → Plating → Cooling → Cleaning → Polishing → Hot-Dip Galvanizing.

Electro Galvanized Wire:

Steps: Degreasing → Washing → Electrolytic Plating → Passivation → Drying.

Processing Techniques

Hot Dipped Galvanized Wire: The workpiece is immersed in molten zinc for a specific duration to create a thick, durable coating. It's commonly used for heavy-duty applications like pipe fittings.

Electro Galvanized Wire: Utilizes electroplating equipment to deposit a thin, uniform zinc layer onto the steel surface. The process is typically less complex and used for lighter applications.

Appearance

Hot Dipped Galvanized Wire: The surface is typically rough and may show signs of process water lines or zinc buildup, especially at the ends. The finish is a silvery-white color.

Electro Galvanized Wire: The surface is smooth with a uniform appearance. It typically has a yellow-green or bluish tint, with no visible zinc buildup or defects

Product Details

Characteristics

Durable zinc coating.

Good corrosion and oxidation resistance.

Widely applicable.

Applications

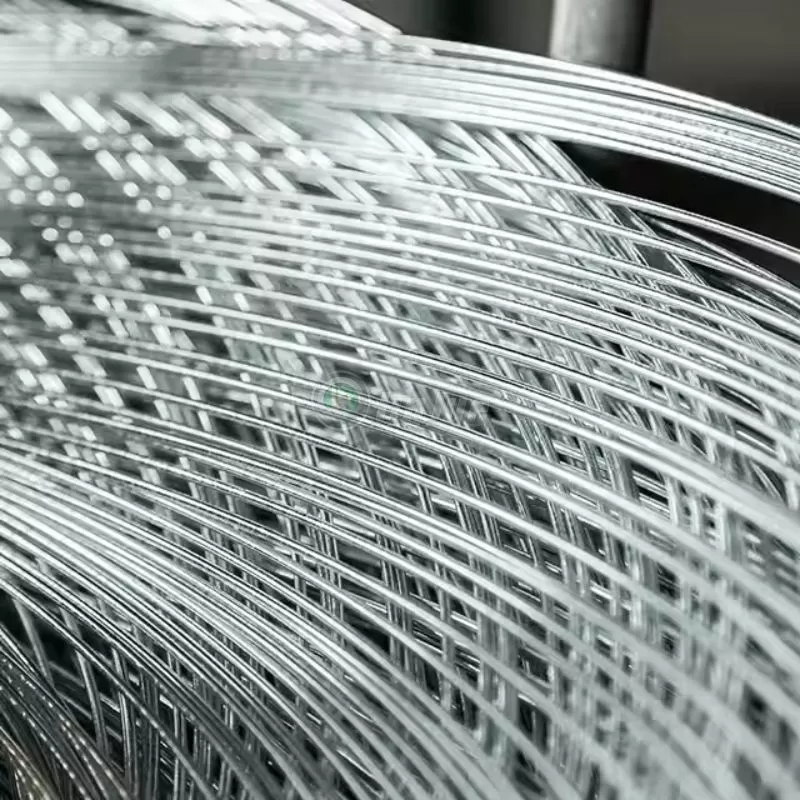

Mesh weaving.
Tying wires on construction sites.
Craft-making.
Material for nets and fences.
Packaging for household products.

Packaging

Details:
Inner layer f plastic film, uter layer f burlap.
Inner layer f plastic film, uter layer f misture-prf paper.

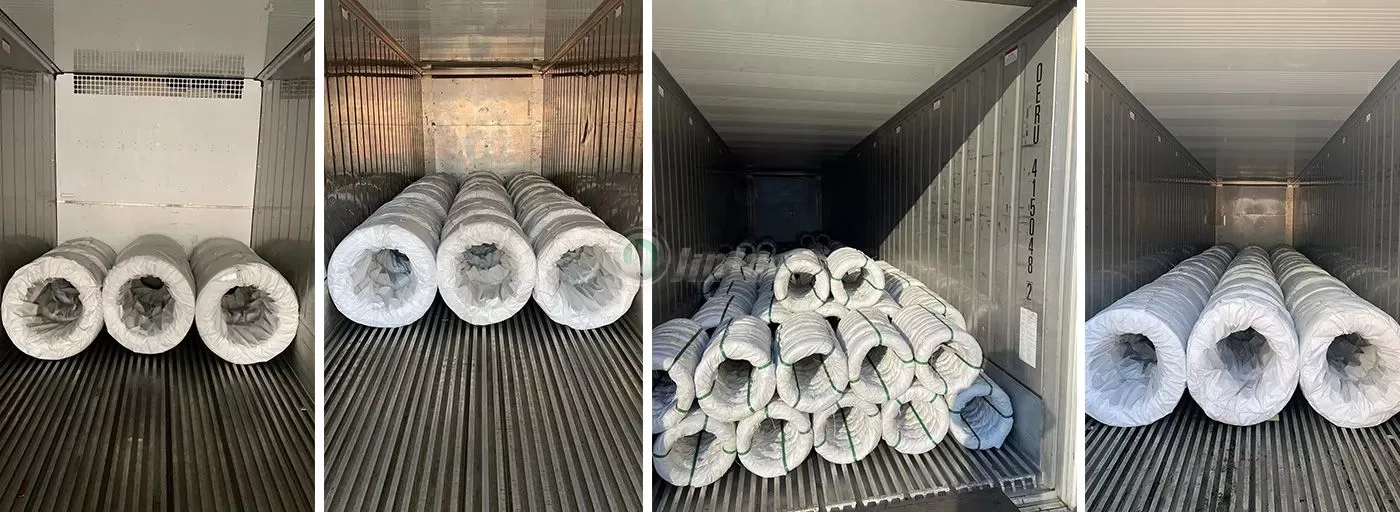

Overall:

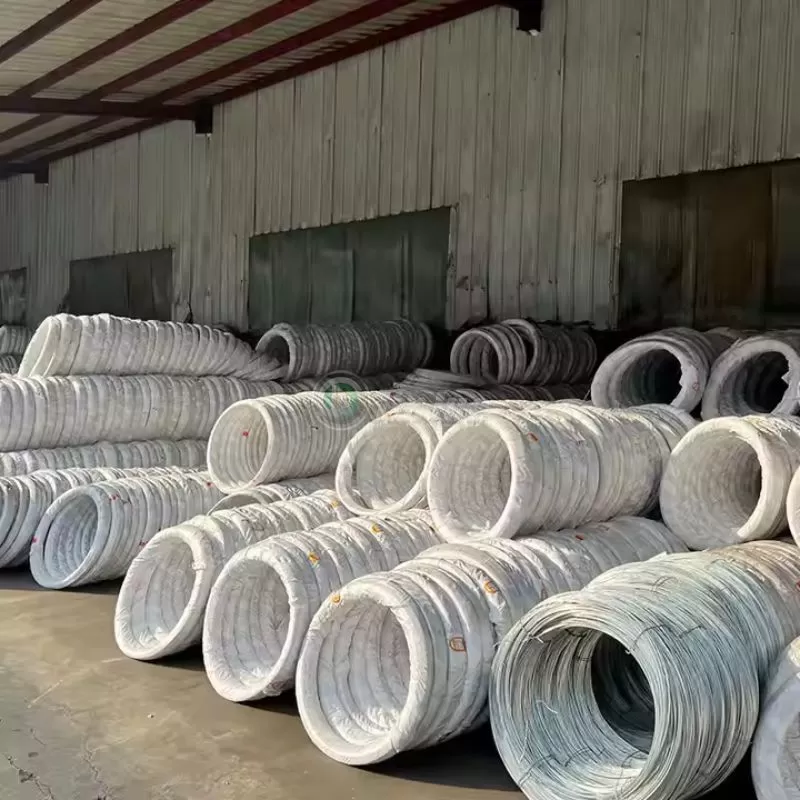

In cil r spl frm (single cil weight ranging frm 10 kg t 1000 kg).
Packed in cartns r n pallets.
