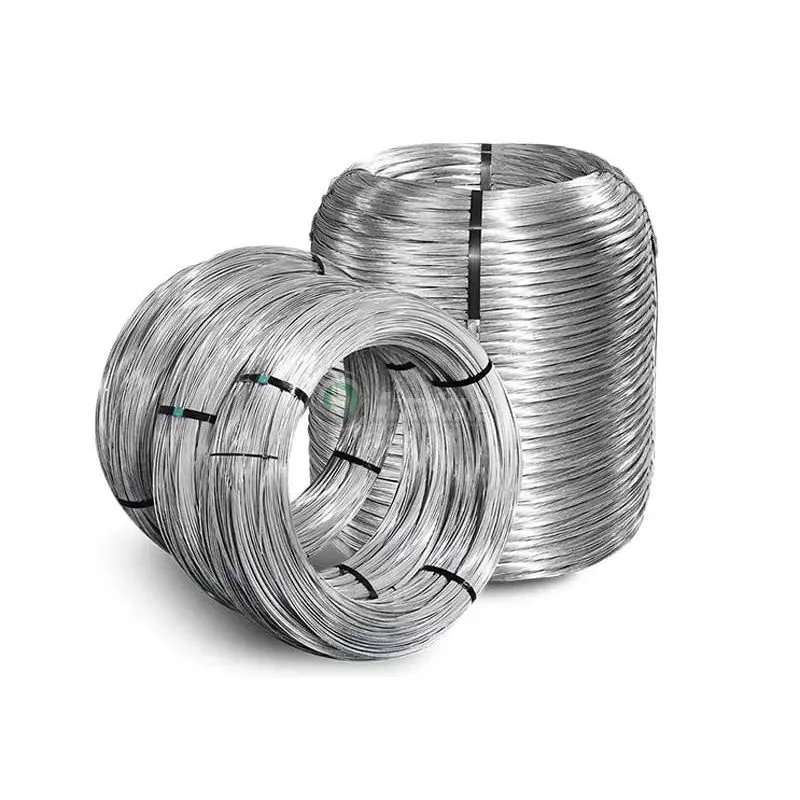

Galvanized Wire
Product Introduction

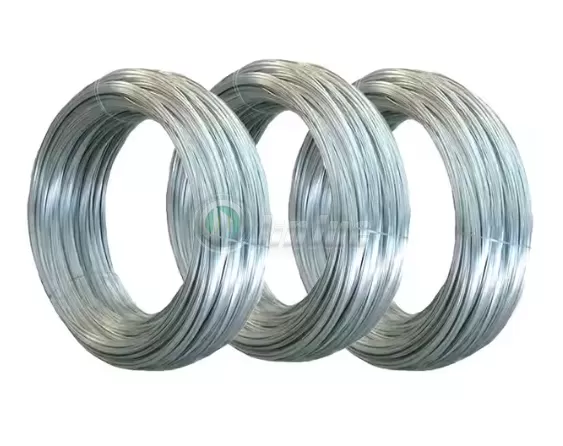

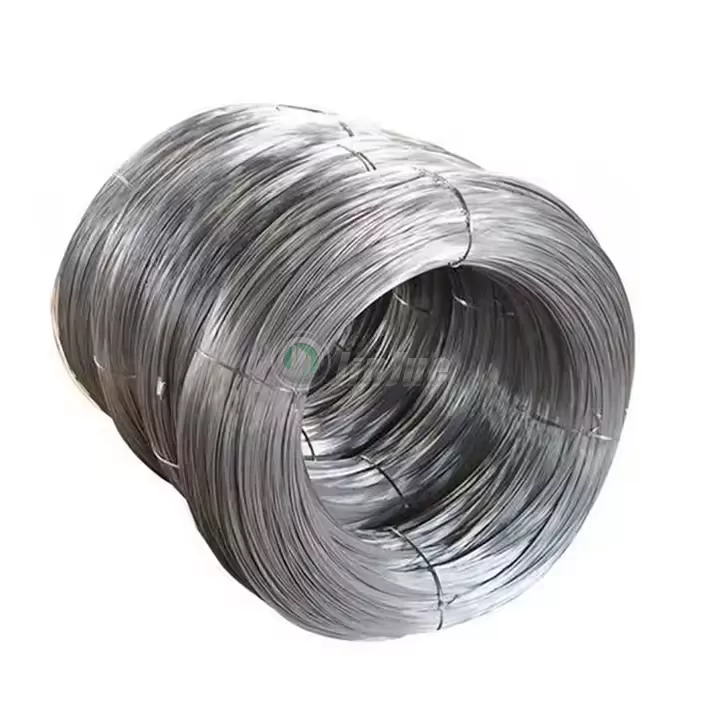

Hot-dip galvanized wire is one of the main galvanized wire products. Common sizes for hot-dip galvanized wire range from 8 gauge to 16 gauge, and we also accept smaller or larger diameters upon customer request. Hot-dip galvanized wire has a strong zinc coating, providing excellent corrosion resistance and high tensile strength. This type of wire is widely used for crafts, wire mesh weaving, fence netting, product packaging, and other daily applications.
Specifications
Material: Low-carbon steel wire.
Common Diameter: 8 Gauge to 16 Gauge.
Process: Steel rod rolling → Wire drawing → Annealing → Rust removal → Pickling → Galvanizing → Coiling.
Common Zinc Coating: 30–60 g/m² (other sizes available).
Heavy Zinc Coating: ≥100 g/m², up to 300 g/m².
Tensile Strength: 500–800 MPa.
| Item | Details |
| Product Name | Hot-Dip Galvanized Wire |
| Material | Low Carbon Steel (Q195, Q235) |
| Zinc Coating | 40 – 350 grams per square meter or customizable |
| Wire Diameter | 0.5 mm – 5.0 mm |
| Tensile Strength | 350 – 550 N/mm² |
| Minimum Order Quantity | 5 tons |
| Packaging | 1 kg – 1,000 kg coils or customizable |
| Samples | Available |
| Features | Excellent corrosion resistance, bright silver surface, high tensile strength, etc. |
| Packaging | Inner plastic and outer woven bag packaging |
| Table 1: Hot-dipped galvanized iron wire | |||
| Wire Gauge Size | SWG (mm) | BWG (mm) | Metric (mm) |
| 8 | 4.06 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | - |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | - |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.89 | 0.90 |
| 21 | 0.81 | 0.813 | 0.80 |
| 22 | 0.71 | 0.711 | 0.70 |
Feature
Higher tensile strength.
Good flexibility and softness.
Uniform zinc coating.
Strong corrosion resistance.

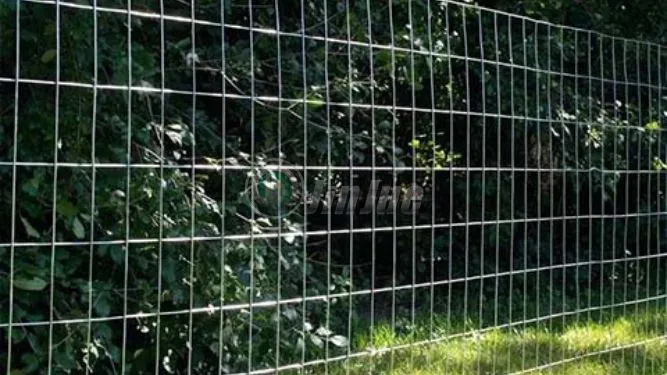

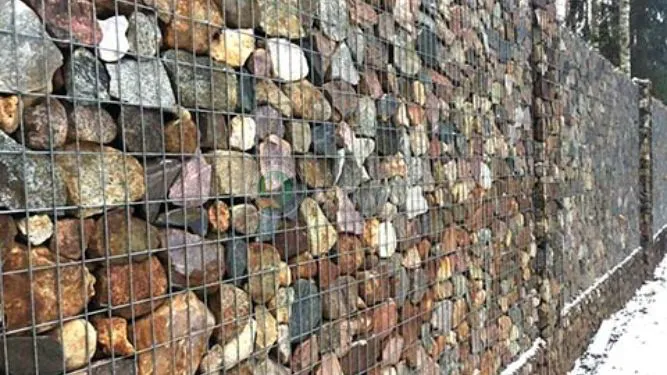

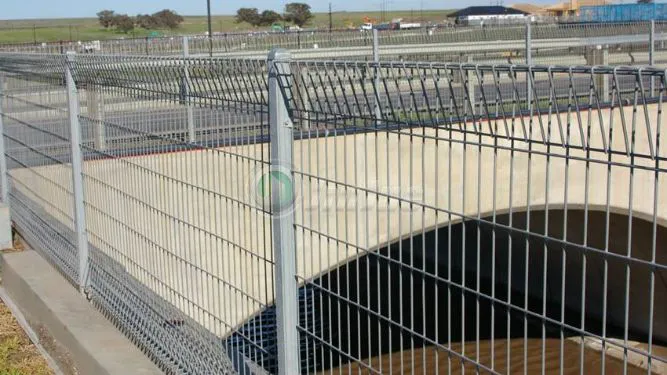

Application

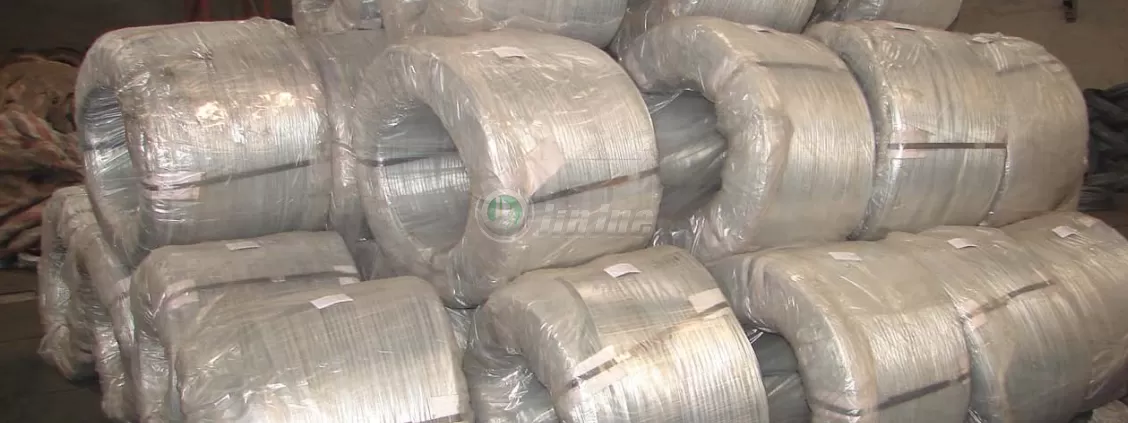

Package
Detail:
Inside plastic films, outside hessian cloth or woven bag.
Inside plastic films, outside moister-proof paper.
Total:
In coils or spools (single coil weight ranges from 10 kg to 1000 kg).
In carton or pallet.

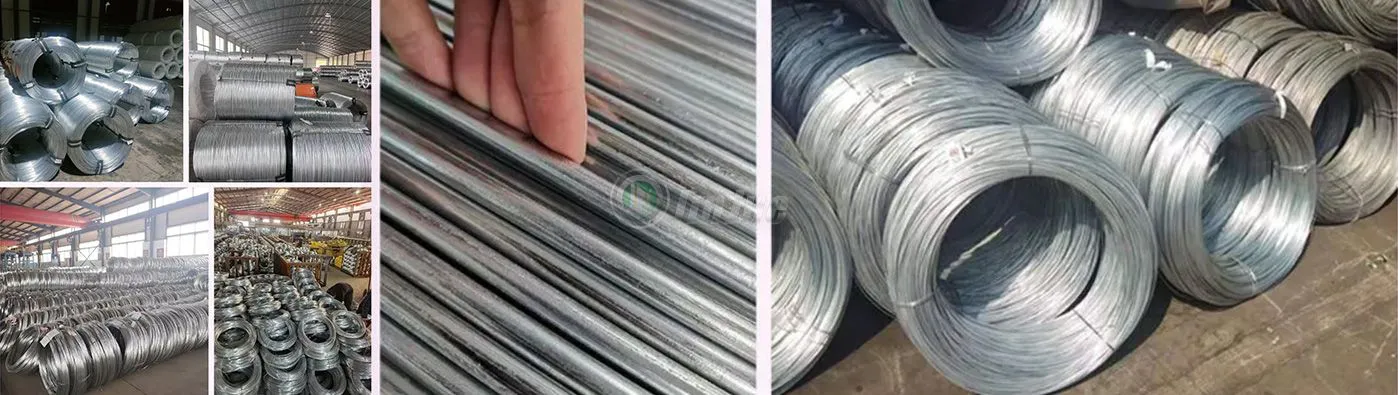

Factory Show
