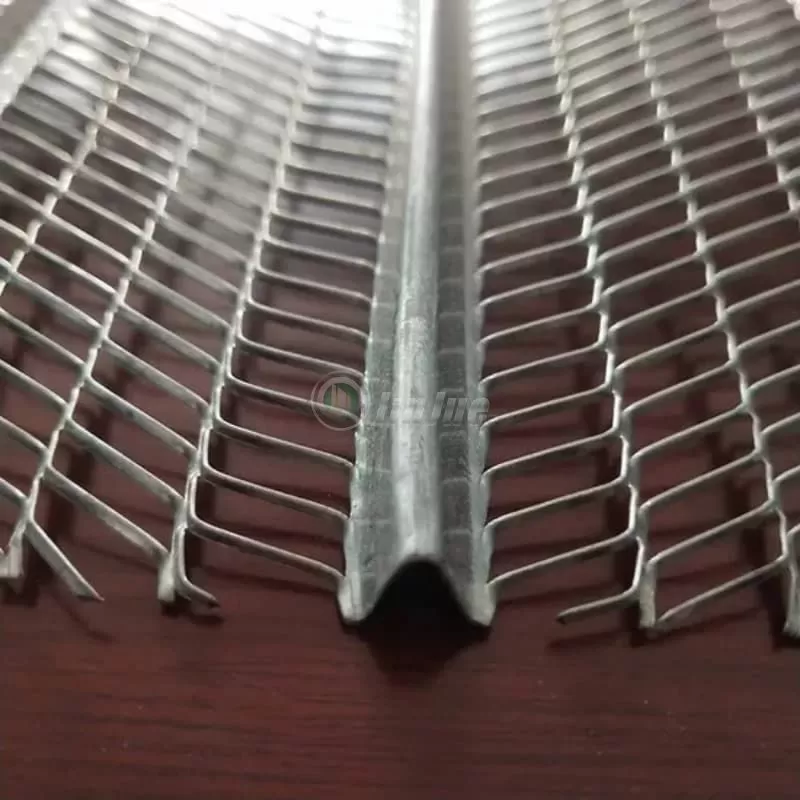

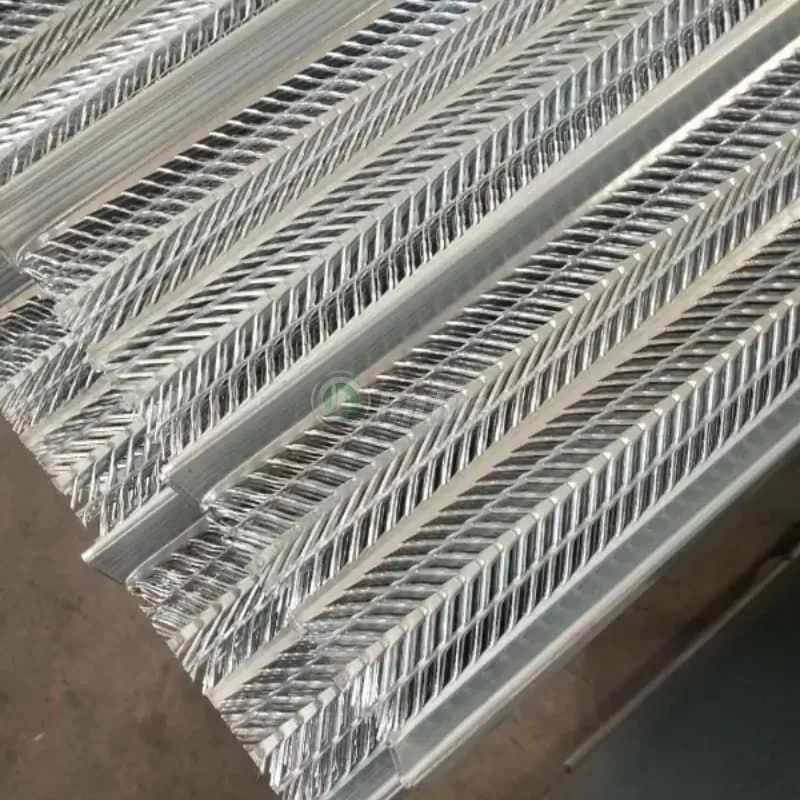

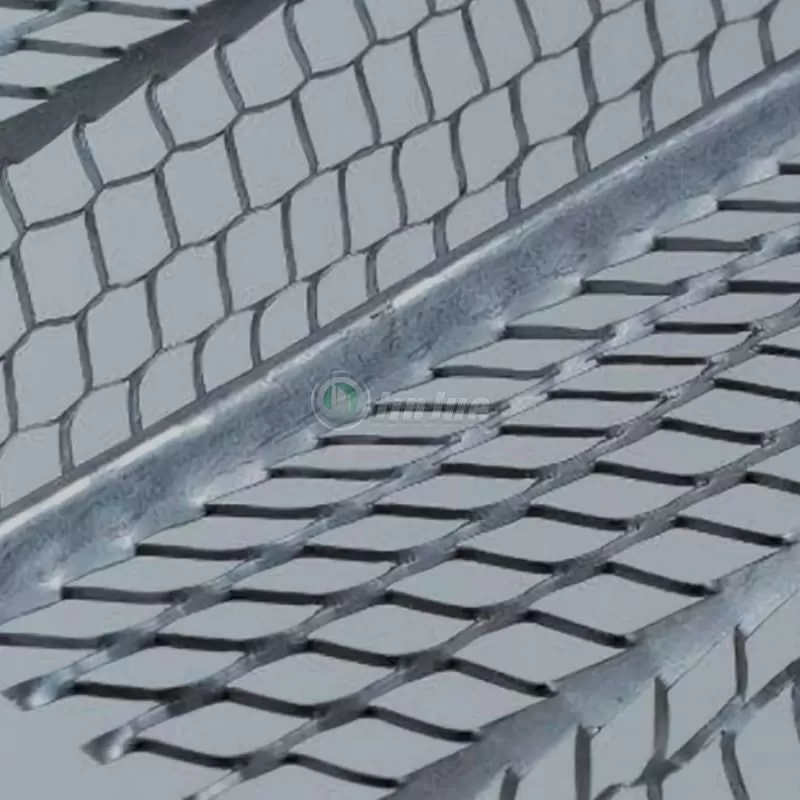

Rib Lath (ribbed metal plate) is an expanded metal plate with evenly distributed rib reinforcement on the surface, mainly used for gypsum plastering, concrete pouring and wall reinforcement. Usually made of galanized steel, stainless steel or aluminum alloy materials, it has high strength and good adhesion.
Specification
Thickness (mm) Width (mm) Length (mm) Material
0.3 - 0.6 600 - 700 2000 - 2500 Galvanized steel / stainless steel / aluminum
| Thickness (mm) | Width (mm) | Length (mm) | Material |
|---|---|---|---|
| 0.3 - 0.6 | 600 - 700 | 2000 - 2500 | Galvanized steel / Stainless steel / Aluminum |
Comparison Between Rib Lath and Expanded Metal Lath
| Comparison Items | Rib Lath (Ribbed Metal Plate) | Expanded Metal Lath (Ordinary Metal Mesh) |
|---|---|---|
| Structure | Ribbed reinforcement | Uniformly expanded metal mesh |
| Strength | Higher, suitable for large-area construction | Lower, suitable for general plastering |
| Application Scenarios | Applicable to concrete pouring, large-area walls | Mainly used for small plastering projects |
Feature
Main features
1.Enhanced adhesion: The rib structure provides better mechanical locking and improves the adhesion of plaster and concrete.
2.High strength: Rib reinforcement improves overall rigidity and load-bearing capacity.
3.Anti-corrosion and durability: Galvanized or stainless steel material, strong corrosion resistance.
4.Lightweight and easy to install: Easy to construct, suitable for large-area walls or ceilings.
5.Wide applicability: Suitable for curved surfaces, special-shaped structures, and adapt to various construction needs.
Application Areas
Gypsum plastering engineering (internal and external wall construction, improving adhesion)
Concrete pouring (replacing traditional wooden formwork, enhancing structural stability)
Fireproof partition walls (used for lightweight partition walls, improving fire resistance)
Tunnel and bridge engineering (as permanent formwork, improving durability)
Roof and ceiling construction (enhancing surface strength, preventing cracking)
