What is TRAIGHT WIRE?
Straight Wire, also called straight wire, straight wire, straightening wire, refers to a metal wire product that has been drawn and straightened to keep its straight shape. It is commonly used for:
Welding wire
Filter element skeleton
Wire for braided mesh
Medical steel wire
Spring steel wire
Model/support wire, etc.
Material type:
Material Features
Stainless steel (SS304/316) Corrosion resistance, good mechanical properties
Carbon steel (medium and low carbon) High strength, easy to weld
Special alloys such as titanium wire, nickel wire, molybdenum wire are used in high temperature and high corrosion environments
Copper wire, aluminum wire have strong conductivity and are used for electronic component processing
📐 Common specifications:

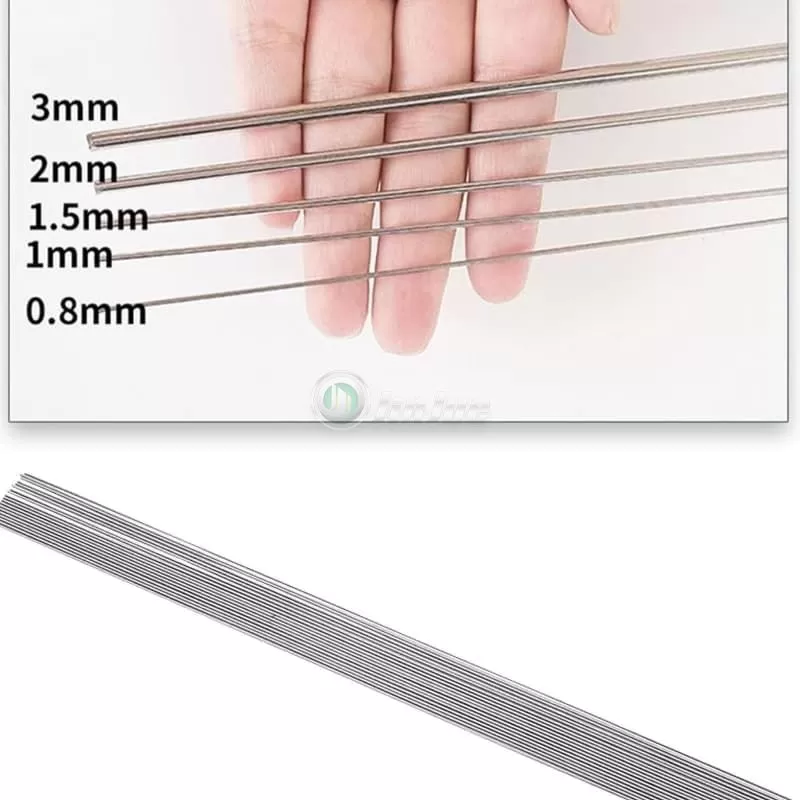

Diameter range: 0.1mm~6mm (commonly 0.3mm~3mm)
Length specification: customizable by customers (100mm~3m)
Tolerance control: up to ±0.01mm
Surface state: bright surface, matte surface, polishing, electroplating, phosphating, etc.
🔧 Processing method:
Wire drawing → straightening → cutting
Customizable cutting head shape (flat head, round head, chamfer)
Support deburring to improve safety of use
🏭 Typical application scenarios:
Industry Application
Filter element manufacturing As the inner skeleton/support wire of the filter element
Welding manufacturing Used as TIG/MIG welding rod raw material
Medical equipment Surgical wire, wire rack
3D printing bracket Model structure support
Hardware products Springs, pins, hooks, etc.
Before use, choose the appropriate hardness (soft, semi-hard, hard) according to the application;
Medical or electronic grade needs to be degreased/cleaned;
Pay attention to rust and moisture-proof treatment for long-term storage.
