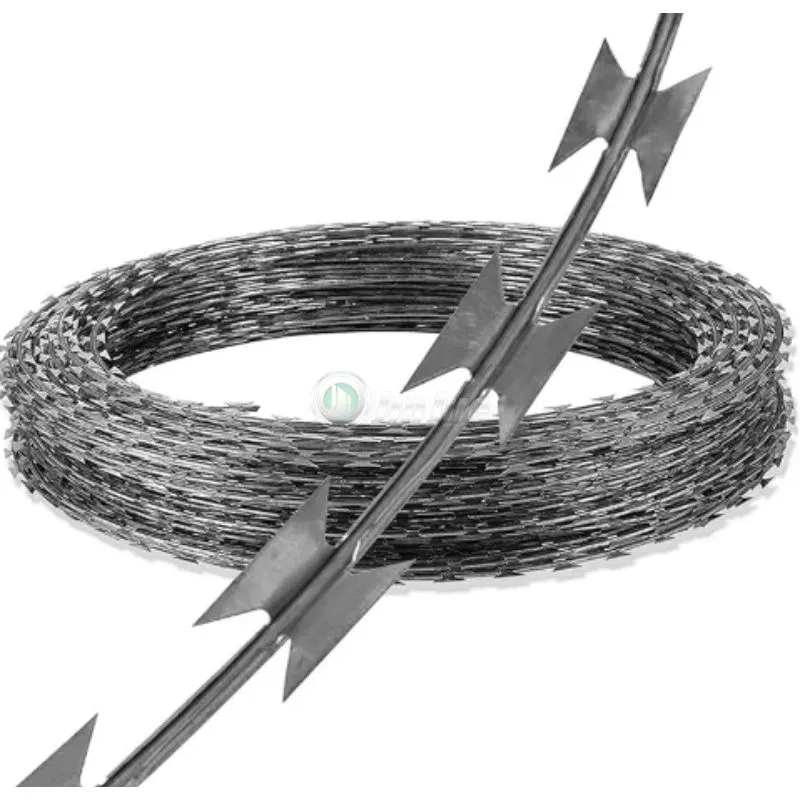

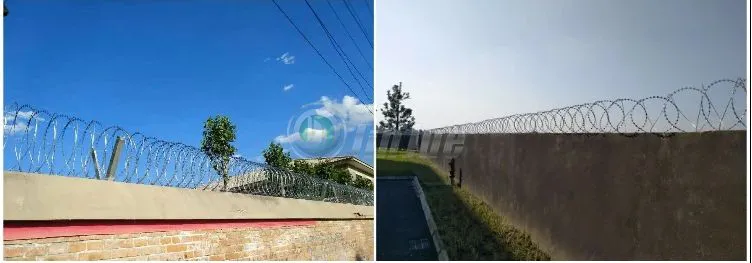

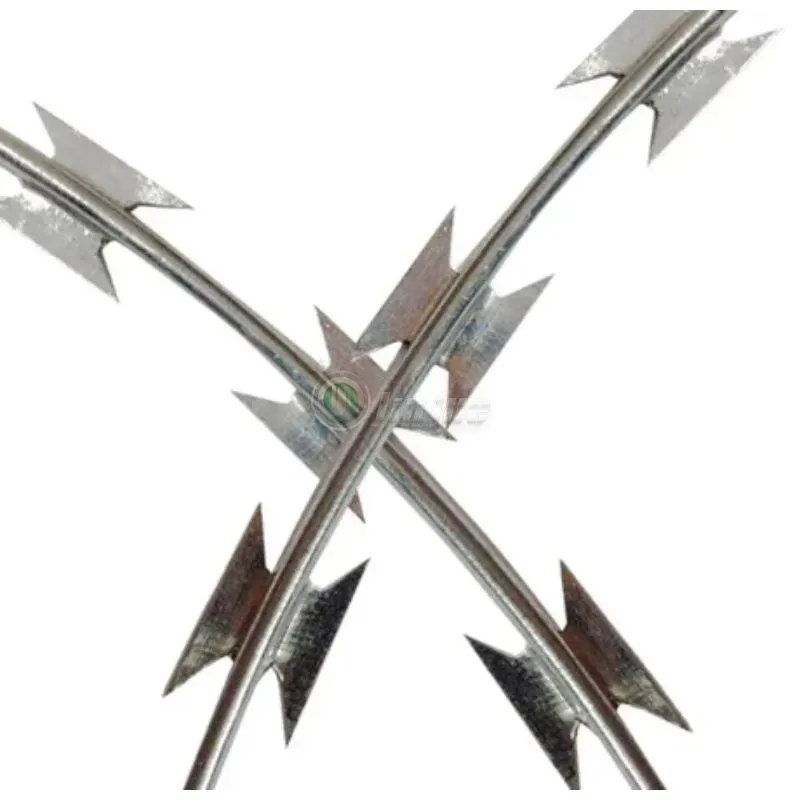

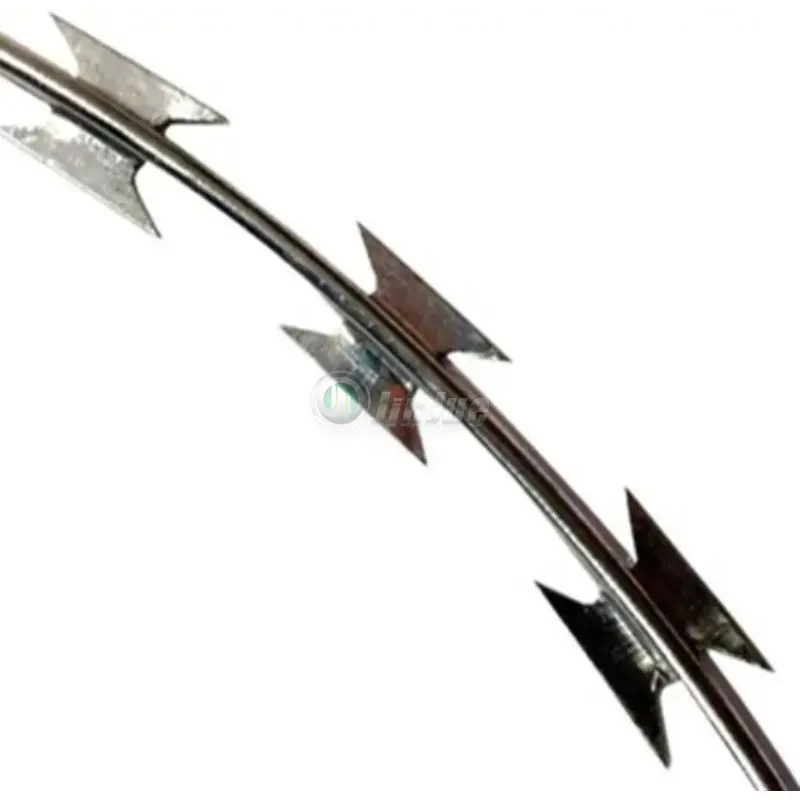

Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.


Currently, barbed tape has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.

Product Specifications

Reference NumberBlade StyleThicknessWire DiaBarb
Length
Barb
Width
Barb
spacing
BTO-12 Razor Barbed Wire0.5±0.052.5±0.112±115±126±1
BTO-18 Razor Barbed Wire0.5±0.052.5±0.118±115±133±1
BTO-22 Razor Barbed Wire0.5±0.052.5±0.122±115±134±1
BTO-28 Razor Barbed Wire0.5±0.052.5281545±1
BTO-30 Razor Barbed Wire0.5±0.052.5301845±1
CBT-60 Razor Barbed Wire0.6±0.052.5±0.160±232±1100±2
CBT-65 Razor Barbed Wire0.6±0.052.5±0.165±221±1100±2

We support customization of various models.

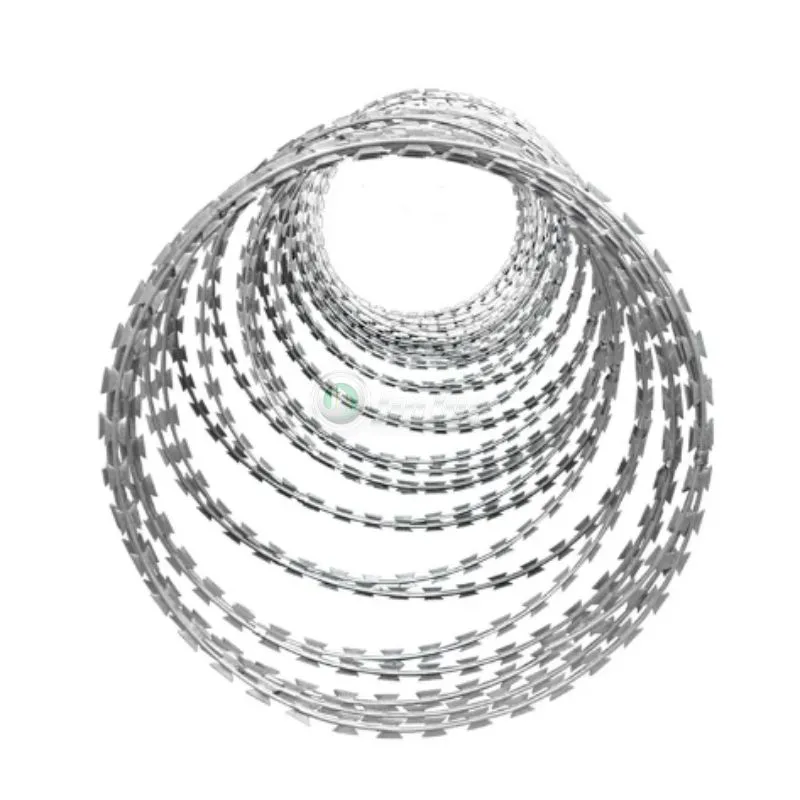

Outside DiameterNo. of LoopsStandard Length per CoilTypeNotes
450mm338MCBT-65Single coil
500mm4110MCBT-65Single coil
700mm4110MCBT-65Single coil
960mm5313MCBT-65Single coil
500mm10216MBTO-10.15.22Cross type
600mm8614MBTO-10.15.22Cross type
700mm7212MBTO-10.15.22Cross type
800mm6410MBTO-10.15.22Cross type
960mm529MBTO-10.15.22Cross type
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.

We support customization of various models.

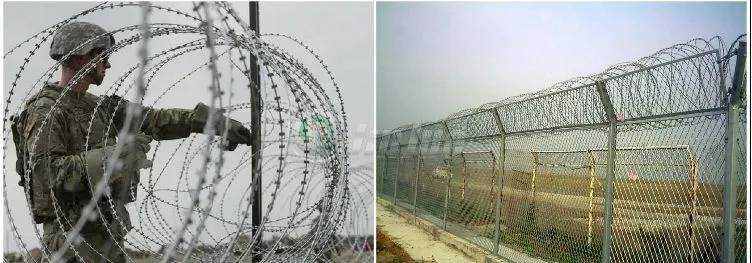

Application
