Crowd control barrier Features
Lightweight and Easy to Install: Designed for convenience, these barriers are lightweight, making installation quick and hassle-free.
Flexible Movement: Their design allows for easy relocation, giving you the flexibility to adjust as needed.
Corrosion and Rust Resistant: Built to last, these barriers are resistant to corrosion and rust, ensuring long-term durability in various environments.
Variety of Attractive Colors: Choose from a wide range of appealing colors to match your event or site aesthetic.
Smooth Surface for Safety: The barriers feature a smooth surface that prevents scratches, ensuring safe handling for everyone.
Technical Parameters of Crowd Barrier
Material Options: Available in either iron steel tube or stainless steel tube, ensuring durability and strength.
Panel Widths: Choose from panel widths of 2.0 m and 2.5 m to fit your specific crowd control needs.
Panel Heights: Options include heights of 1.1 m, 1.25 m, and 1.5 m, allowing for customization based on requirements.
Frame Tube Specifications: The frame is constructed from various tube sizes: φ321.5 mm, φ381.5 mm, φ421.5 mm, and φ481.5 mm, providing robust support.
Infilled Tube Sizes: Infilled tubes are available in sizes: φ120.7 mm, φ141.0 mm, φ161.0 mm, φ201.2 mm, and φ25*1.2 mm, offering versatility in design.
Foot Design: The crowd barrier can be equipped with either welded feet for stability or removable feet for easy transport and storage.
Surface Treatment of Crowd Control Barrier
Hot Dipped Galvanized Steel Barrier:
This process involves immersing the steel barrier in molten zinc after welding, creating a protective layer on the surface. This coating effectively prevents oxidation and corrosion, significantly extending the service life of the steel.
PVC Coating or Powder Coating:
After galvanization, our barriers can be treated with high-quality PVC or powder coating. This treatment combines with the galvanized layer to form a robust protective barrier against oxidation and corrosion. As a result, our fencing system remains both attractive and durable over time, enhancing the overall aesthetics of the barrier.

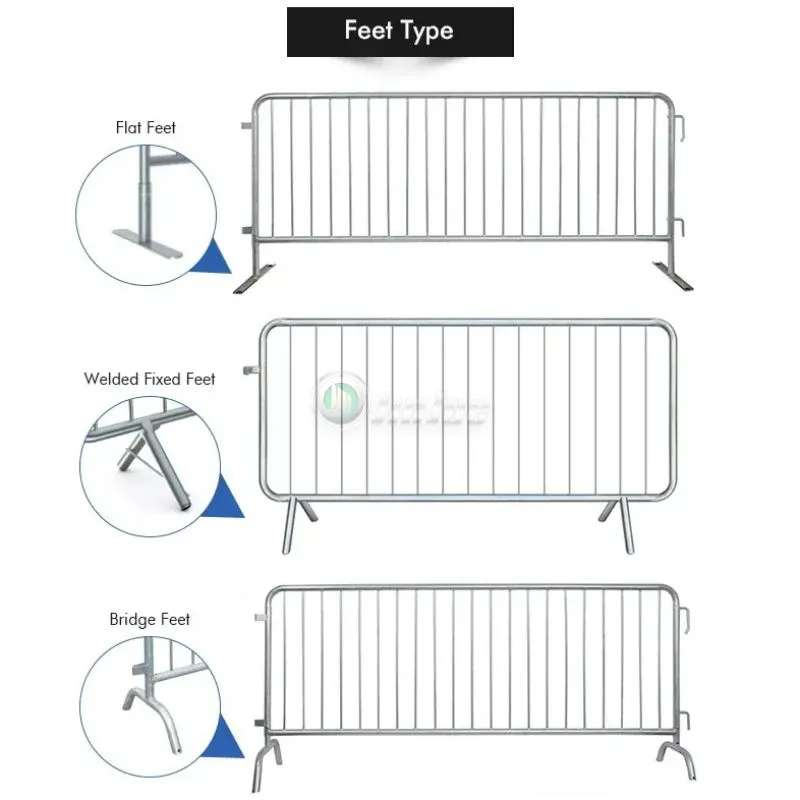

Types of Crowd Control Barriers

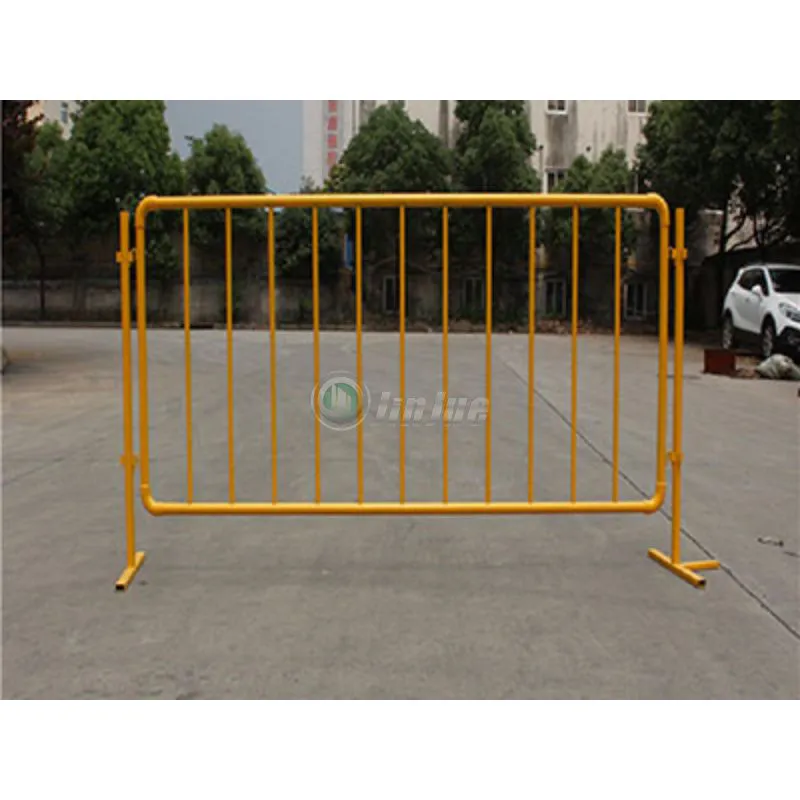

Flat Feet Crowd Control Barrier:
This barrier features two base feet made from a welded iron plate and a short round tube. Designed for flat surfaces, it includes two holes in the base for screwing into the ground, enhancing stability when needed.

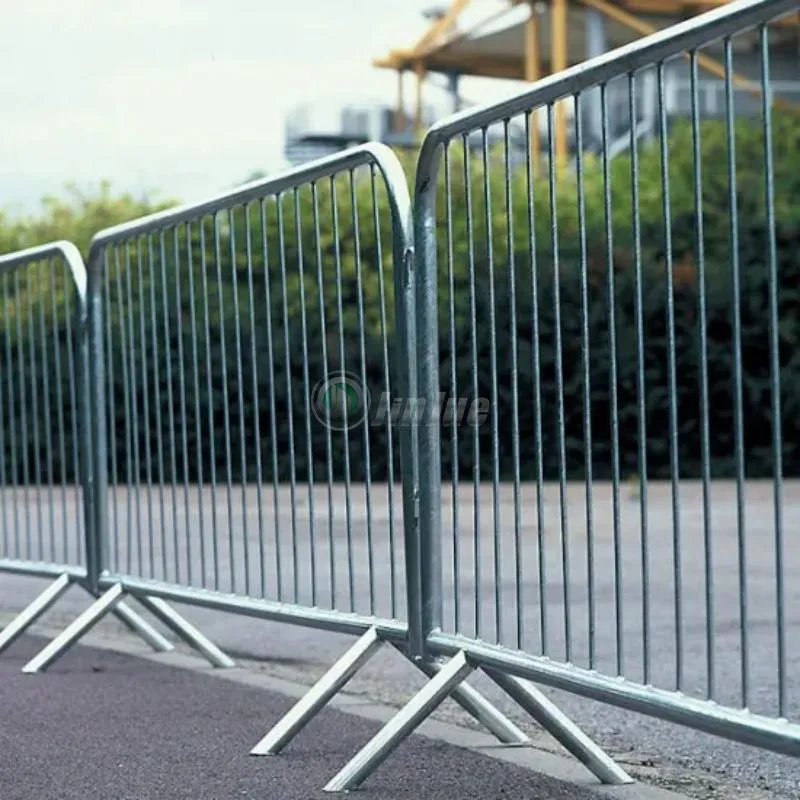

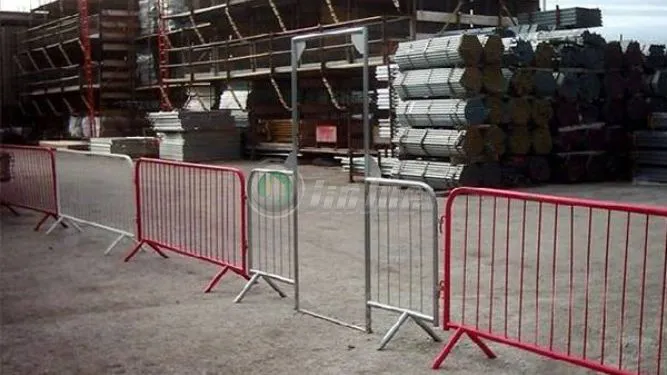

Welded Fixed Feet Crowd Control Barrier:
Also known as the "^" Shape Feet Crowd Control Barrier, this design incorporates two base feet formed by short round tubes welded in a "^" configuration. Connected by a steel bar, this sturdy base is suitable for all types of surfaces, providing durability and stability.

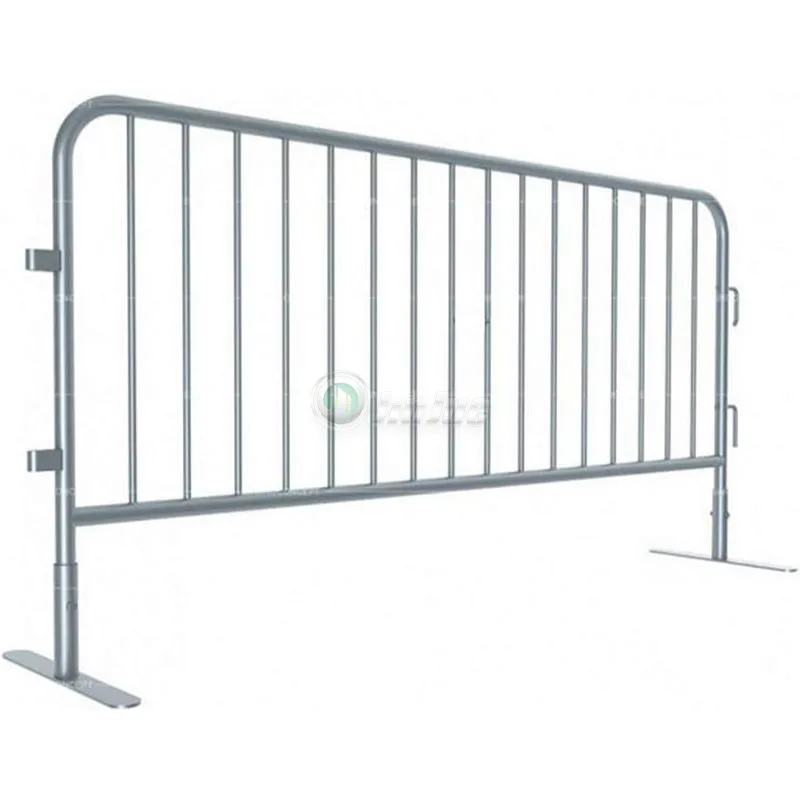

Bridge Feet Crowd Control Barrier:
This barrier is equipped with two base feet shaped like a bridge, consisting of a round tube and a short vertical tube welded together. The base attaches to the barrier panel via screws, ensuring a stable structure that is effective on various road surfaces.
