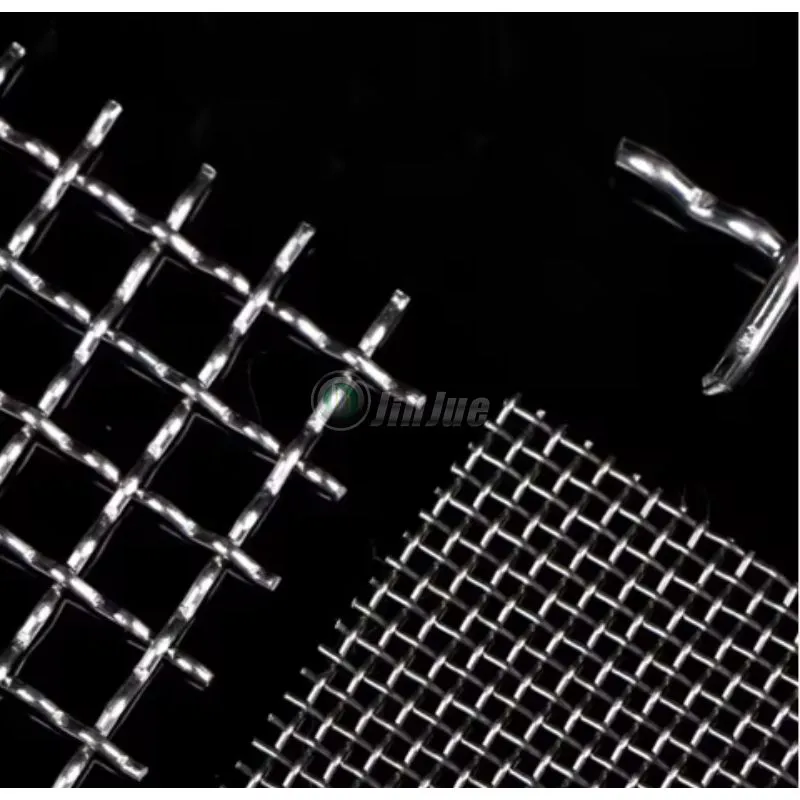

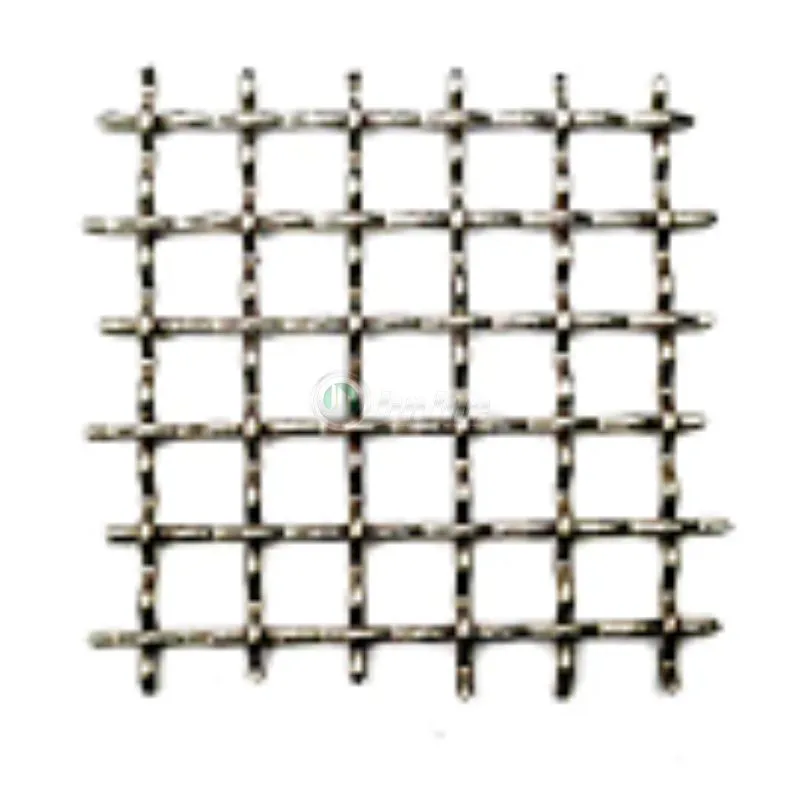

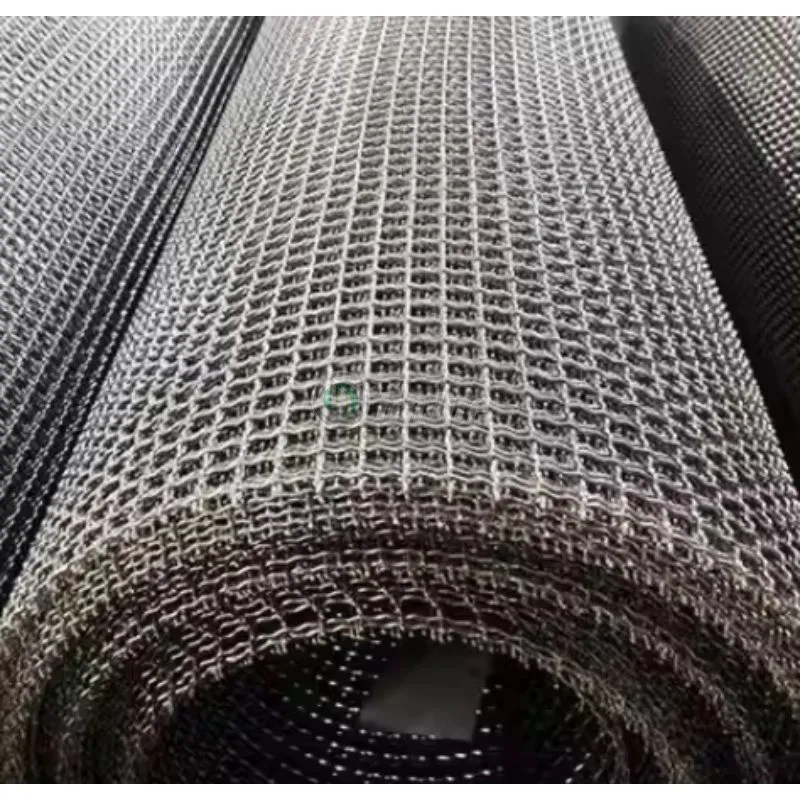

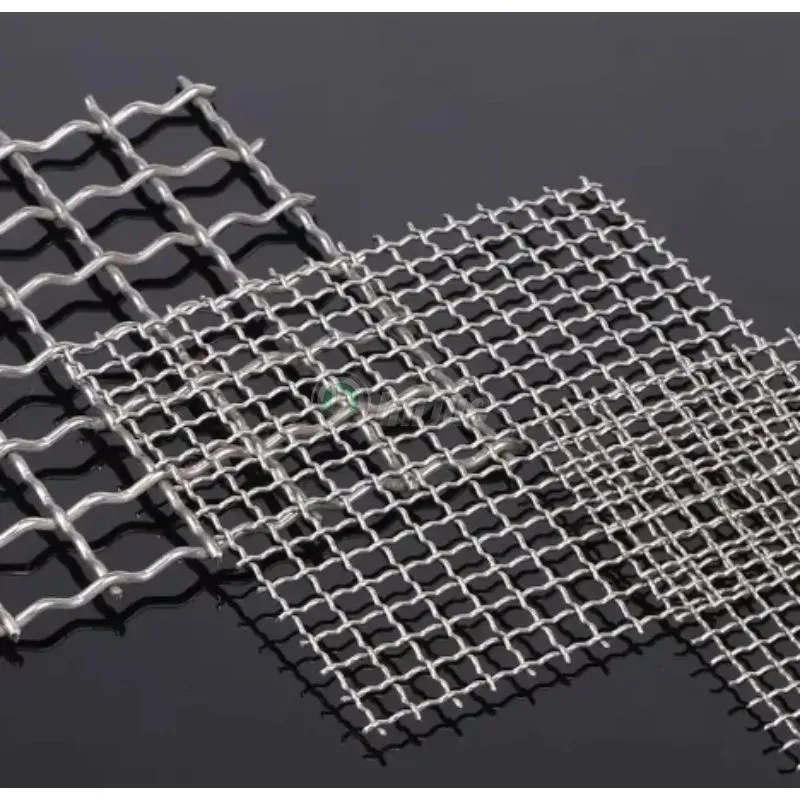

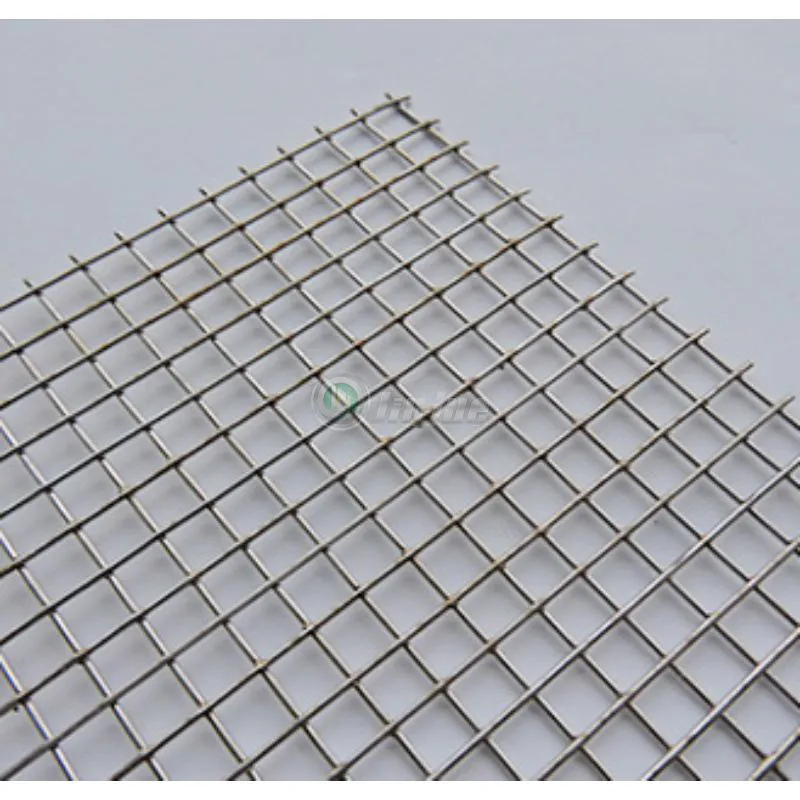

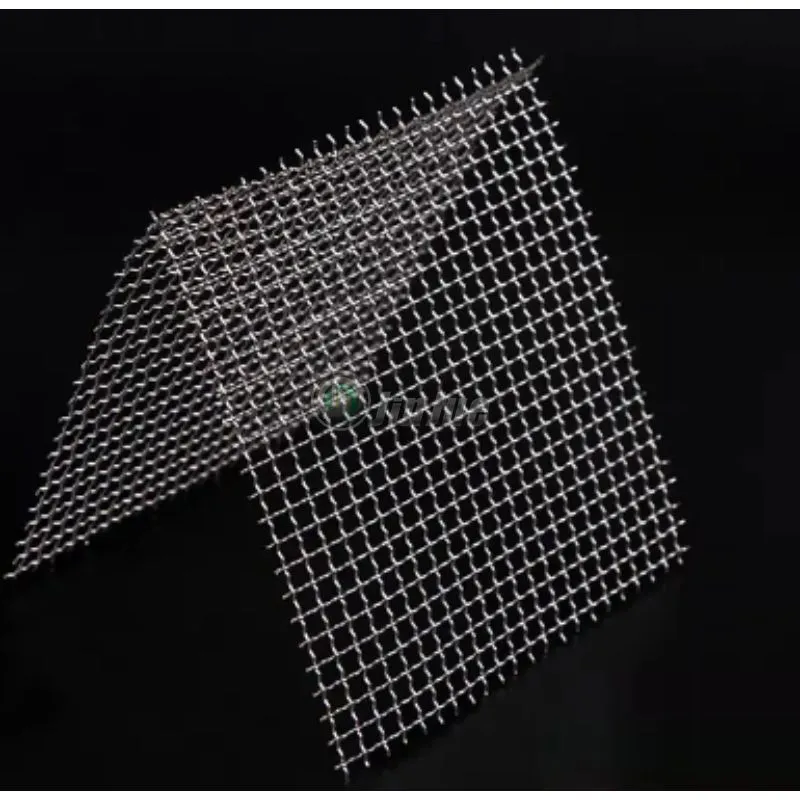

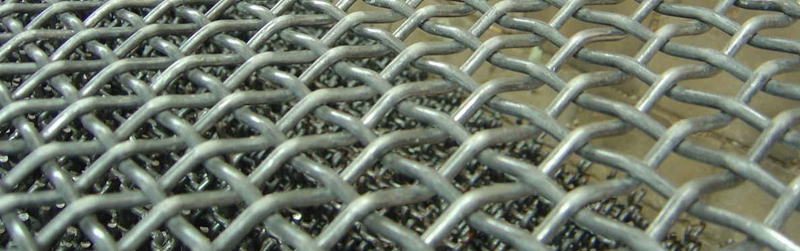

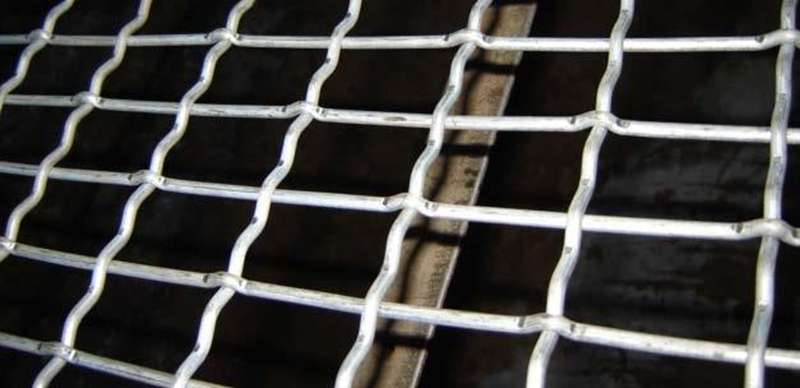

Woven Mesh
Woven Mesh are made of previous corrugated wires or rods and mounted alternately to make a plain cloth. Their manufacturing wire diameter ranges between 1.50 mm and 5 mm and the square meshes are within a wide range of possibilities.
The cloth can have stability, consistency and smooth surface according to the number of wire corrugations, their depth and distance between them; these are factors to be borne in mind according to use needs.
Specification
| Specification List of Crimped Wire Mesh/Wire Mesh for Roast | ||||
| Wire Gauge SWG | Wire Diameter mm | Mesh/Inch | Aperture mm | Weight kg/m2 |
| 8 | 4.05 | 2.8 | 1 | 22.5 |
| 8 | 1.27 | 1.2 | 42 | |
| 10 | 1 | 1.5 | 50 | |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 4.2 |
| 14 | 2.0 | 3.6 | 4.5 | 7.2 |

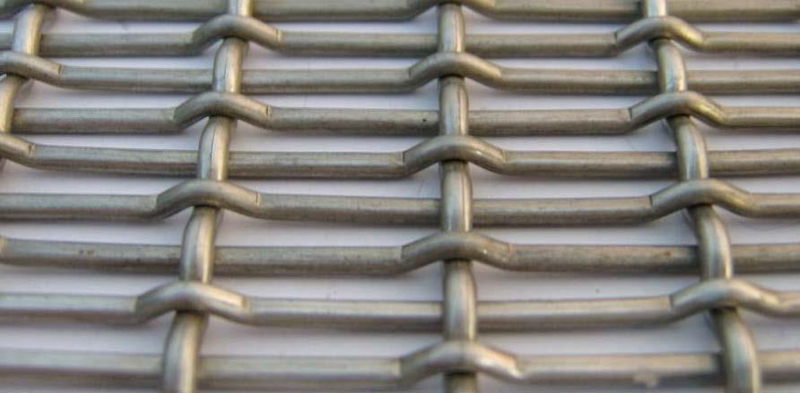

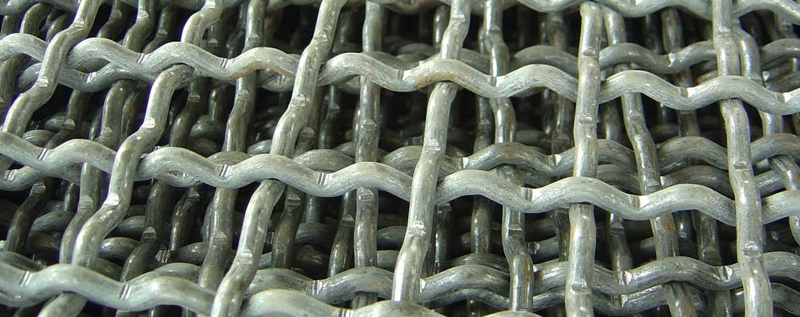

The weaving method of tying Woven Mesh

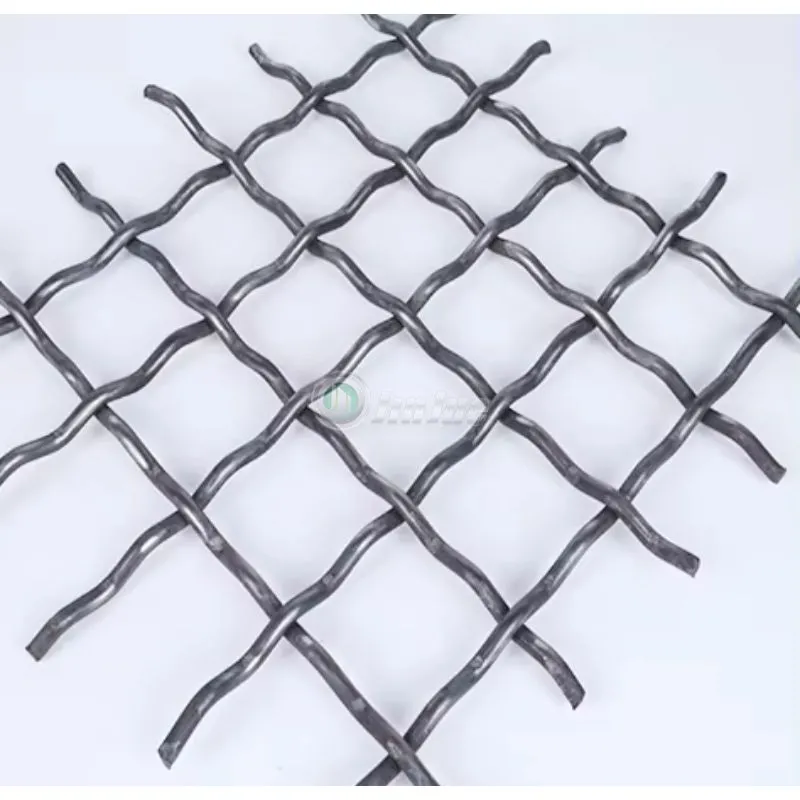

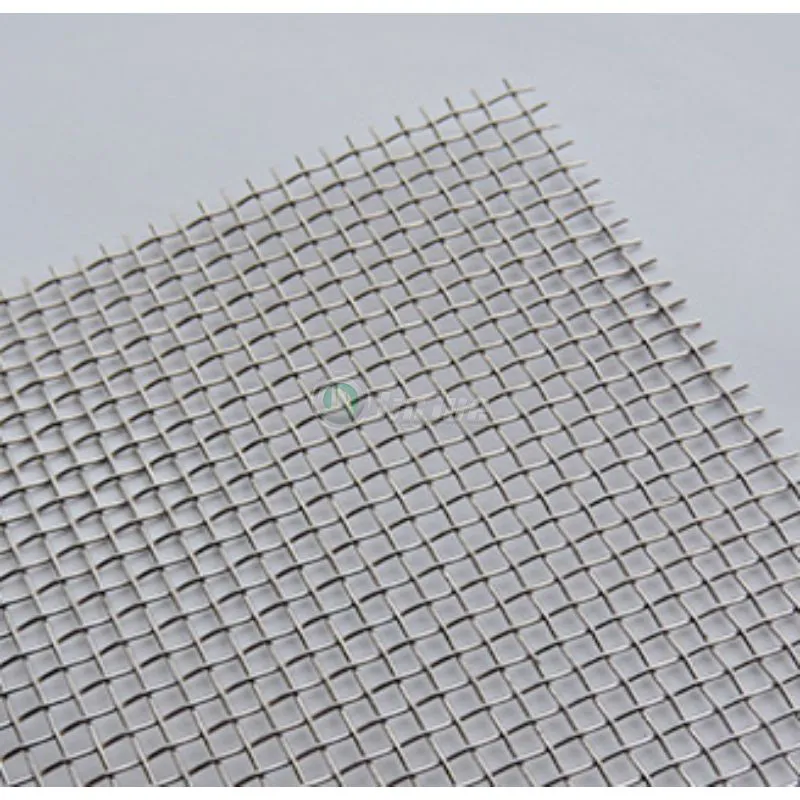

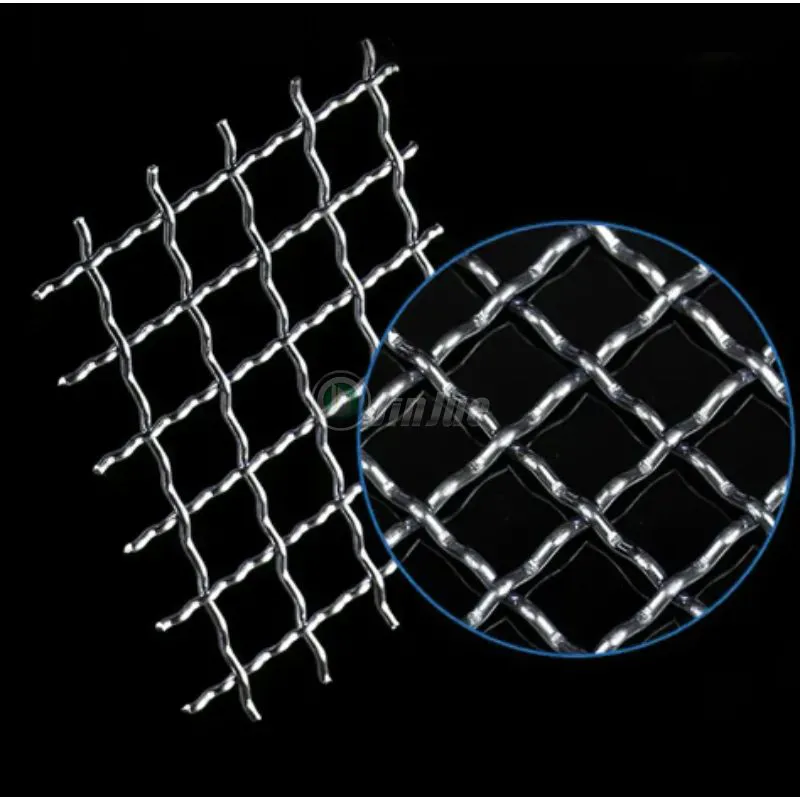

1. Plain Crimped

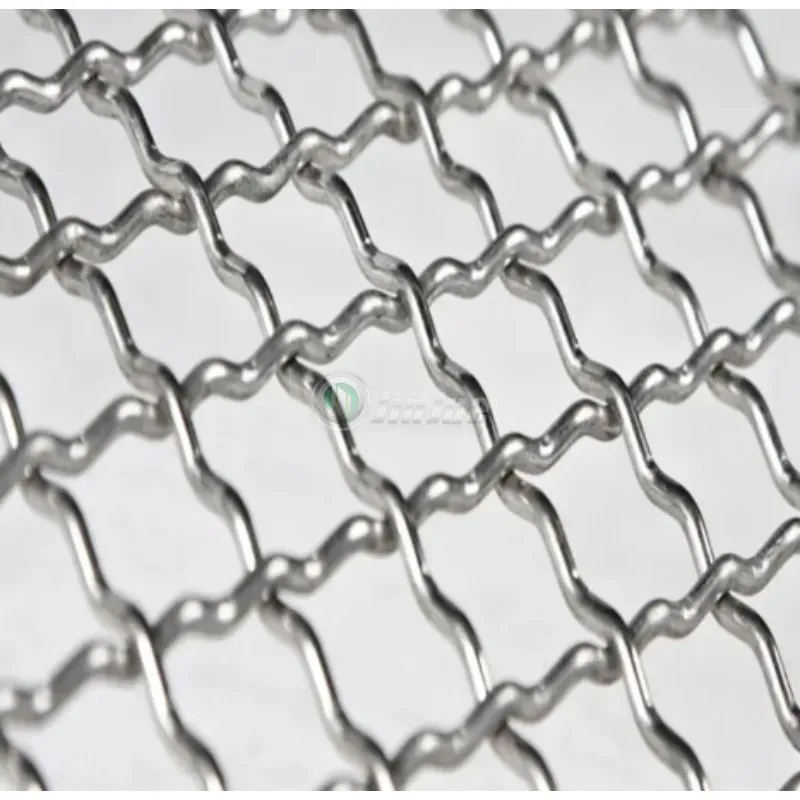

2. Intermediate Crimped
3. Lock Crimped
4. Flat Top Crimped
